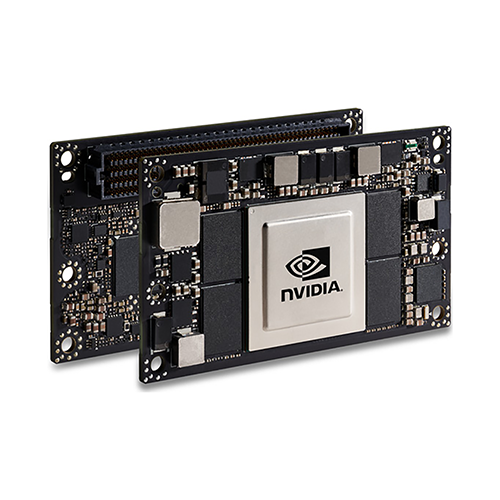

Nvidia Jetson TX2

Nvidia Jetson TX2 4GB Module
Nvidia Jetson TX2 8GB Module
PDF
    .
    Jetson TX2 8GB
    Jetson TX2 4GB
    AI Performance
    1.33 TFLOPS
    1.33 TFLOPS
    GPU
    256-core NVIDIA Pascal™ architecture GPU
    256-core NVIDIA Pascal™ architecture GPU
    GPU Max Frequency
    1.3 GHz
    1.3 GHz
    CPU
    Dual-core NVIDIA Denver™ 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor
    Dual-core NVIDIA Denver™ 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor
    CPU Max Frequency
    Denver 2: 2 GHz
    Denver 2: 2 GHz
    Cortex-A57: 2 GHz
    Cortex-A57: 2 GHz
    Memory
    8GB 128-bit LPDDR4
    4GB 128-bit LPDDR4
    59.7GB/s
    51.2GB/s
    Storage
    32GB eMMC 5.1
    16GB eMMC 5.1
    Video Encode
    1x 4K60 (H.265)
    1x 4K60 (H.265)
    3x 4K30 (H.265)
    3x 4K30 (H.265)
    4x 1080p60 (H.265)
    4x 1080p60 (H.265)
    Video Decode
    2x 4K60 (H.265)
    2x 4K60 (H.265)
    7x 1080p60 (H.265)
    7x 1080p60 (H.265)
    14x 1080p30 (H.265)
    14x 1080p30 (H.265)
    CSI Camera
    Up to 6 cameras
    Up to 6 cameras
    (12 via virtual channels)
    (12 via virtual channels)
    12 lanes MIPI CSI-2
    12 lanes MIPI CSI-2
    D-PHY 1.2 (up to 30 Gbps)
    D-PHY 1.2 (up to 30 Gbps)
    PCIe
    up to 1 x1 + 1 x4 OR 1 x1 + 1 x1 + 1 x2
    up to 1 x1 + 1 x4 OR 1 x1 + 1 x1 + 1 x2
    (PCIe Gen2)
    (PCIe Gen2)
    USB
    up to 3x USB 3.0 (5 Gbps)
    up to 3x USB 3.0 (5 Gbps)
    3x USB 2.0
    3x USB 2.0
    Networking
    1x GbE, WLAN
    1x GbE, WLAN
    Display
    2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0
    2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0
    2 x4 DSI (1.5Gbps/lane)
    2 x4 DSI (1.5Gbps/lane)
    Other I/O
    5x UART, 3x SPI, 4x I2S, 8x I2C, 2x CAN, GPIOs
    5x UART, 3x SPI, 4x I2S, 8x I2C, 2x CAN, GPIOs
    Power
    7.5W - 15W
    7.5W - 15W
    Mechanical
    87mm x 50mm
    87mm x 50mm
    400-pin connector
    400-pin connector
    Integrated Thermal Transfer Plate
    Integrated Thermal Transfer Plate
