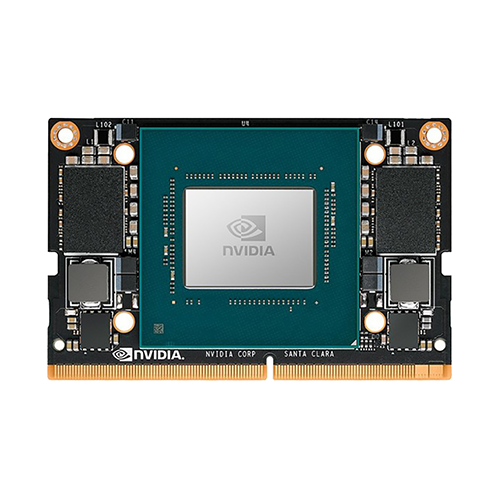

Nvidia Jetson Xavier NX 8GB Module
Nvidia Jetson Xavier NX 16GB Module

.	Jetson Xavier NX series
	Jetson Xavier NX (16GB)	Jetson Xavier NX (8GB)
AI Performance	21 TOPS
GPU	384-core NVIDIA Volta™ architecture GPU with 48 Tensor Cores
GPU Max Frequency	1100 MHz
CPU	6-core NVIDIA Carmel Arm®v8.2 64-bit CPU
	6MB L2 + 4MB L3
CPU Max Frequency	1.9 GHz
DL Accelerator	2x NVDLA
DLA Max Frequency	1.1 GHz
Vision Accelerator	2x PVA
Safety Cluster Engine	-
Memory	16GB 128-bit LPDDR4x	8GB 128-bit LPDDR4x
	59.7GB/s	59.7GB/s
Storage	16GB eMMC 5.1
Video Encode	2x 4K60 (H.265)
	4x 4K30 (H.265)
	10x 1080p60 (H.265)
	22x 1080p30 (H.265)
Video Decode	2x 8K30 (H.265)
	6x 4K60 (H.265)
	12x 4K30 (H.265)
	22x 1080p60 (H.265)
	44x 1080p30 (H.265)
CSI Camera	Up to 6 cameras
	(24 via virtual channels)
	14 lanes MIPI CSI-2
	D-PHY 1.2 (up to 30 Gbps)
PCIe*	1 x4 (PCIe Gen4) + 1 x1 (PCIe Gen3)
USB*	1x USB 3.2 Gen2 (10 Gbps)
	3x USB 2.0
Networking*	1x GbE
Display	2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0
Other I/O	3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, PWM, DMIC & DSPK, GPIOs
Power	10W - 20W
Mechanical	69.6mm x 45mm
	260-pin SO-DIMM connector
