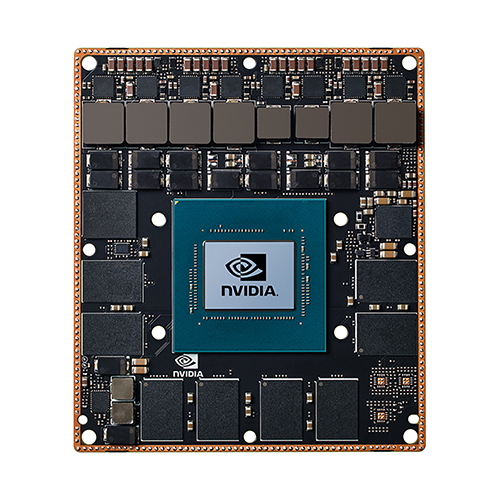

Nvidia Jetson AGX Xavier 32GB Module
Nvidia Jetson AGX Xavier 64GB Module
Nvidia Jetson AGX Xavier 32GB Industrial Module

.	Jetson AGX Xavier series
	Jetson AGX Xavier Industrial	Jetson AGX Xavier (64GB)	Jetson AGX Xavier (32GB)
AI Performance	30 TOPS	32 TOPS
GPU	512-core NVIDIA Volta architecture GPU with 64 Tensor Cores
GPU Max Frequency	1211 MHz	1377 MHz
CPU	8-core NVIDIA Carmel Arm®v8.2 64-bit CPU
	8MB L2 + 4MB L3
CPU Max Frequency	2.0 GHz	2.2 GHz
DL Accelerator	2x NVDLA
DLA Max Frequency	1.2 GHz	1.4 GHz
Vision Accelerator	2x PVA
Safety Cluster Engine	2x Arm® Cortex®-R5 in lockstep	-
Memory	32GB 256-bit LPDDR4x (ECC support)	64GB 256-bit LPDDR4x	32GB 256-bit LPDDR4x
	136.5GB/s	136.5GB/s	136.5GB/s
Storage	64GB eMMC 5.1	32GB eMMC 5.1
Video Encode	2x 4K60 (H.265)	4x 4K60 (H.265)
	6x 4K30 (H.265)	8x 4K30 (H.265)
	12x 1080p60 (H.265)	16x 1080p60 (H.265)
	24x 1080p30 (H.265)	32x 1080p30 (H.265)
Video Decode	2x 8K30 (H.265)	2x 8K30 (H.265)
	4x 4K60 (H.265)	6x 4K60 (H.265)
	8x 4K30 (H.265)	12x 4K30 (H.265)
	18x 1080p60 (H.265)	26x 1080p60 (H.265)
	36x 1080p30 (H.265)	52x 1080p30 (H.265)
CSI Camera	Up to 6 cameras	Up to 6 cameras
	(36 via virtual channels)	(36 via virtual channels)
	16 lanes MIPI CSI-2	16 lanes MIPI CSI-2 \| 8 lanes SLVS-EC
	D-PHY 1.2 (up to 40 Gbps)	D-PHY 1.2 (up to 40 Gbps)
	C-PHY 1.1 (up to 62 Gbps)	C-PHY 1.1 (up to 62 Gbps)
PCIe*	1 x8 + 1 x4 + 1 x2 + 2 x1
	(PCIe Gen4, Root Port & Endpoint)
USB*	3x USB 3.2 Gen2 (10 Gbps)
	4x USB 2.0
Networking*	1x GbE
Display	3 multi-mode DP 1.4/eDP 1.4/HDMI 2.0
Other I/O	5x UART, 3x SPI, 4x I2S, 8x I2C, 2x CAN, PWM, DMIC, GPIOs
Power	20W - 40W	10W - 30W
Mechanical	100mm x 87mm
	699-pin connector
	Integrated Thermal Transfer Plate
