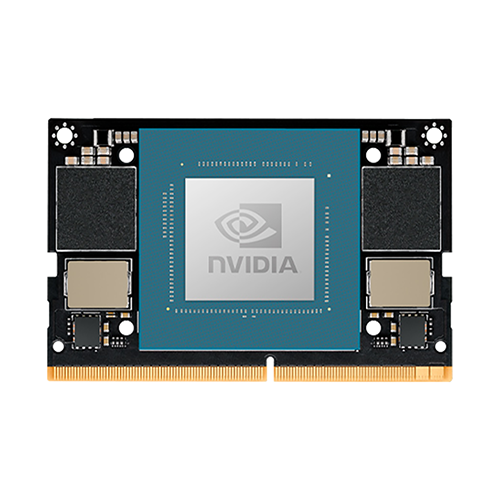

Jetson Orin Nano series
|
|
Jetson Orin Nano Developer Kit
|
Jetson Orin Nano 8GB
|
Jetson Orin Nano 4GB
|
|
AI Performance
|
40 TOPS
|
20 TOPS
|
|
GPU
|
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
|
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
|
|
GPU Max Frequency
|
625MHz
|
|
CPU
|
6-core Arm Cortex-A78AE v8.2 64-bit CPU
|
|
1.5MB L2 + 4MB L3
|
|
CPU Max Frequency
|
1.5 GHz
|
|
DL Accelerator
|
-
|
|
DLA Max Frequency
|
-
|
|
Vision Accelerator
|
-
|
|
Safety Cluster Engine
|
-
|
|
Memory
|
8GB 128-bit LPDDR5
|
4GB 64-bit LPDDR5
|
|
68 GB/s
|
34 GB/s
|
|
Storage
|
(SD Card Slot & external NVMe via M.2 Key M)
|
(Supports external NVMe)
|
|
Video Encode
|
1080p30 supported by 1-2 CPU cores
|
|
Video Decode
|
1x 4K60 (H.265)
|
|
2x 4K30 (H.265)
|
|
5x 1080p60 (H.265)
|
|
11x 1080p30 (H.265)
|
|
CSI Camera
|
2x MIPI CSI-2 22-pin Camera Connectors
|
Up to 4 cameras (8 via virtual channels***)
|
|
8 lanes MIPI CSI-2
|
|
D-PHY 2.1 (up to 20Gbps)
|
|
PCIe*
|
M.2 Key M slot with x4 PCIe Gen3
|
1 x4 + 3 x1
|
|
M.2 Key M slot with x2 PCIe Gen3
|
(PCIe Gen3, Root Port, & Endpoint)
|
|
USB*
|
USB Type-A Connector: 4x USB 3.2 Gen2
|
3x USB 3.2 Gen2 (10Gbps)
|
|
USB Type-C Connector for UFP
|
3x USB 2.0
|
|
Networking*
|
1xGbE Connector
|
1x GbE
|
|
Display
|
1x DisplayPort 1.2 (+MST) connector
|
1x 4K30 multi-mode DP 1.2 (+MST)/eDP 1.4/HDMI 1.4**
|
|
Other I/O
|
40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO)
|
3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs
|
|
12-pin button header
|
|
4-pin fan header
|
|
microSD Slot
|
|
DC power jack
|
|
Power
|
7W - 15W
|
7W - 10W
|
|
Mechanical
|
100 mm x 79 mmx 21 mm
|
69.6mm x 45mm
|
|
(Height includes feet, carrier board, module, and thermal solution)
|
260-pin SO-DIMM connector
|
