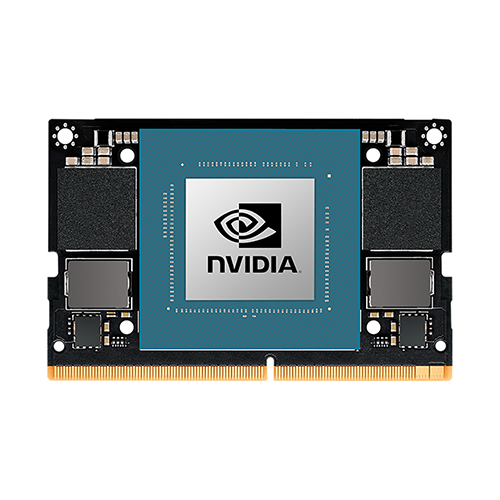

Nvidia Jetson Orin NX 8GB Module
Nvidia Jetson Orin NX 16GB Module

.	Jetson Orin NX series
	Jetson Orin NX 16GB	Jetson Orin NX 8GB
AI Performance	100 TOPS	70 TOPS
GPU	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
GPU Max Frequency	918MHz	765MHz
CPU	8-core Arm Cortex-A78AE v8.2 64-bit CPU	6-core Arm Cortex-A78AE v8.2 64-bit CPU
	2MB L2 + 4MB L3	1.5MB L2 + 4MB L3
CPU Max Frequency	2 GHz
DL Accelerator	2x NVDLA v2	1x NVDLA v2
DLA Max Frequency	614MHz
Vision Accelerator	1x PVA v2
Safety Cluster Engine	-
Memory	16GB 128-bit LPDDR5	8GB 128-bit LPDDR5
	102.4GB/s	102.4GB/s
Storage	(Supports external NVMe)
Video Encode	1x 4K60 (H.265)
	3x 4K30 (H.265)
	6x 1080p60 (H.265)
	12x 1080p30 (H.265)
Video Decode	1x 8K30 (H.265)
	2x 4K60 (H.265)
	4x 4K30 (H.265)
	9x 1080p60 (H.265)
	18x 1080p30 (H.265)
CSI Camera	Up to 4 cameras (8 via virtual channels***)
	8 lanes MIPI CSI-2
	D-PHY 2.1 (up to 20Gbps)
PCIe*	1 x4 + 3 x1
	(PCIe Gen4, Root Port, & Endpoint)
USB*	3x USB 3.2 Gen2 (10Gbps)
	3x USB 2.0
Networking*	1x GbE

Display	1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
Other I/O	3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs








Power	10W - 25W	10W - 20W
Mechanical	69.6mm x 45mm
	260-pin SO-DIMM connector
