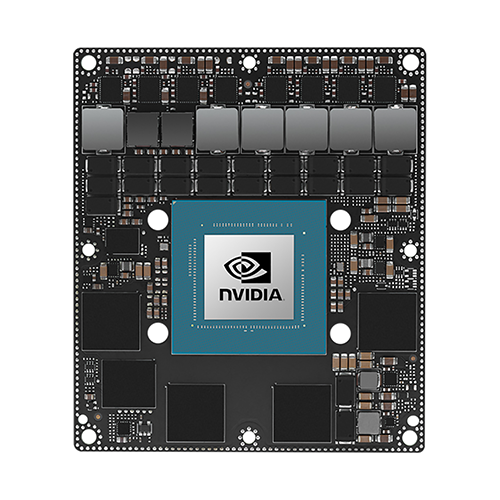

Jetson AGX Orin series
|
|
Jetson AGX Orin Developer Kit
|
Jetson AGX Orin 64GB
|
Jetson AGX Orin Industrial
|
Jetson AGX Orin 32GB
|
|
AI Performance
|
275 TOPS
|
248 TOPS
|
200 TOPS
|
|
GPU
|
2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores
|
1792-core NVIDIA Ampere architecture GPU with 56 Tensor Cores
|
|
GPU Max Frequency
|
1.3 GHz
|
1.2GHz
|
930MHz
|
|
CPU
|
12-core Arm Cortex-A78AE v8.2 64-bit CPU
|
8-core Arm Cortex-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
|
|
3MB L2 + 6MB L3
|
|
CPU Max Frequency
|
2.2 GHz
|
2.0 GHz
|
2.2 GHz
|
|
DL Accelerator
|
2x NVDLA v2
|
|
DLA Max Frequency
|
1.6GHz
|
1.4GHz
|
|
Vision Accelerator
|
1x PVA v2
|
|
Safety Cluster Engine
|
-
|
|
Memory
|
64GB 256-bit LPDDR5
|
64GB 256-bit LPDDR5 (+ ECC)
|
32GB 256-bit LPDDR5
|
|
204.8GB/s
|
204.8GB/s
|
204.8GB/s
|
|
Storage
|
64GB eMMC 5.1
|
|
Video Encode
|
2x 4K60 (H.265)
|
1x 4K60 (H.265)
|
1x 4K60 (H.265)
|
|
4x 4K30 (H.265)
|
3x 4K30 (H.265)
|
3x 4K30 (H.265)
|
|
8x 1080p60 (H.265)
|
7x 1080p60 (H.265)
|
6x 1080p60 (H.265)
|
|
16x 1080p30 (H.265)
|
15x 1080p30 (H.265)
|
12x 1080p30 (H.265)
|
|
Video Decode
|
1x 8K30 (H.265)
|
1x 8K30 (H.265)
|
1x 8K30 (H.265)
|
|
3x 4K60 (H.265)
|
3x 4K60 (H.265)
|
2x 4K60 (H.265)
|
|
7x 4K30 (H.265)
|
7x 4K30 (H.265)
|
4x 4K30 (H.265)
|
|
11x 1080p60 (H.265)
|
11x 1080p60 (H.265)
|
9x 1080p60 (H.265)
|
|
22x 1080p30 (H.265)
|
23x 1080p30 (H.265)
|
18x 1080p30 (H.265)
|
|
CSI Camera
|
16-lane MIPI CSI-2 connector
|
Up to 6 cameras (16 via virtual channels)
|
|
16 lanes MIPI CSI-2
|
|
D-PHY 2.1 (up to 40Gbps) | C-PHY 2.0 (up to 164Gbps)
|
|
PCIe*
|
x16 PCIe slot supporting x8 PCIe Gen4
|
Up to 2 x8 + 1 x4 + 2 x1
|
|
M.2 Key M slot with x4 PCIe Gen4
|
(PCIe Gen4, Root Port, & Endpoint)
|
|
M.2 Key E slot with x1 PCIe Gen4
|
|
|
USB*
|
USB Type-C connector: 2x USB 3.2 Gen2
|
3x USB 3.2 Gen2 (10 Gbps)
|
|
USB Type-A connector: 2x USB 3.2 Gen2, 2x USB 3.2 Gen1
|
4x USB 2.0
|
|
USB Micro-B connector: USB 2.0
|
|
|
Networking*
|
RJ45 connector with up to 10 GbE
|
1x GbE
|
|
1x 10GbE
|
|
Display
|
1x DisplayPort 1.4a (+MST) connector
|
1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
|
|
Other I/O
|
40-pin header (UART, SPI, I2S, I2C, CAN, PWM, DMIC, GPIO)
|
4x UART, 3x SPI, 4x I2S, 8x I2C, 2x CAN, PWM, DMIC & DSPK, GPIOs
|
|
12-pin automation header
|
|
10-pin audio panel header
|
|
10-pin JTAG header
|
|
4-pin fan header
|
|
2-pin RTC batter backup connector
|
|
microSD slot
|
|
DC power jack
|
|
Power, Force Recovery, and Reset buttons
|
|
Power
|
15W - 60W
|
15W - 75W
|
15W - 40W
|
|
Mechanical
|
110mm x 110mm x 71.65mm
|
100mm x 87mm
|
|
(Height includes feet, carrier board, module, and thermal solution)
|
699-pin Molex Mirror Mezz Connector
|
|
|
Integrated Thermal Transfer Plate
|
