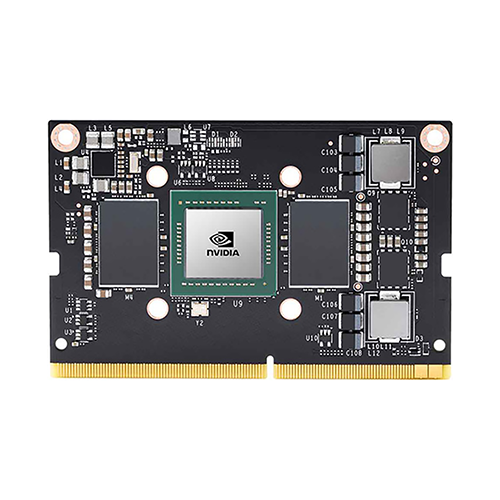

Nvidia Jetson TX2 NX 4GB Module

.	Jetson TX2 NX
AI Performance	1.33 TFLOPS
GPU	256-core NVIDIA Pascal™ architecture GPU
GPU Max Frequency	1.3 GHz
CPU	Dual-core NVIDIA Denver™ 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor
CPU Max Frequency	Denver 2: 2 GHz
CPU Max Frequency	Cortex-A57: 2 GHz
Memory	4GB 128-bit LPDDR4
Memory	51.2GB/s
Storage	16GB eMMC 5.1
Video Encode	1x 4K60 (H.265)
	3x 4K30 (H.265)
	4x 1080p60 (H.265)
Video Decode	2x 4K60 (H.265)
	7x 1080p60 (H.265)
	14x 1080p30 (H.265)
CSI Camera	Up to 5 cameras
	(12 via virtual channels)
	12 lanes MIPI CSI-2
	D-PHY 1.1 (up to 30 Gbps)
PCIe	1 x1 + 1 x2
PCIe	(PCIe Gen2)
USB	1x USB 3.0 (5 Gbps)
USB	3x USB 2.0
Networking	1x GbE
Display	2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0
Display	1x 2 DSI (1.5Gbps/lane)
Other I/O	3x UART, 2x SPI, 4x I2S, 4x I2C, 1x CAN, GPIOs
Power	7.5W - 15W
Mechanical	69.6mm x 45mm
Mechanical	260-pin SO-DIMM connector
