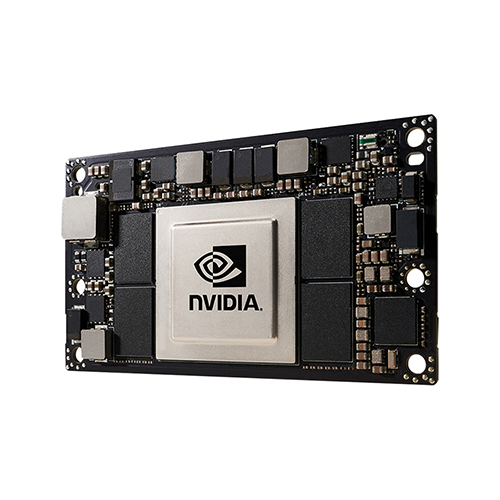

Nvidia Jetson TX2i 8GB Module

.	Jetson TX2i
AI Performance	1.26 TFLOPS
GPU	256-core NVIDIA Pascal™ architecture GPU
GPU Max Frequency	1.12GHz
CPU	Dual-core NVIDIA Denver™ 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor
CPU Max Frequency	Denver2: 1.95 GHz
CPU Max Frequency	Cortex-A57: 1.92 GHz
Memory	8GB 128-bit LPDDR4 (ECC Support)
Memory	51.2GB/s
Storage	32GB eMMC 5.1
Video Encode	1x 4K60 (H.265)
	3x 4K30 (H.265)
	4x 1080p60 (H.265)
Video Decode	2x 4K60 (H.265)
	7x 1080p60 (H.265)
	14x 1080p30 (H.265)
CSI Camera	Up to 6 cameras
	(12 via virtual channels)
	12 lanes MIPI CSI-2
	D-PHY 1.2 (up to 30 Gbps)
PCIe	up to 1 x1 + 1 x4 OR 1 x1 + 1 x1 + 1 x2
PCIe	(PCIe Gen2)
USB	up to 3x USB 3.0 (5 Gbps)
USB	3x USB 2.0
Networking	1x GbE
Display	2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0
Display	2 x4 DSI (1.5Gbps/lane)
Other I/O	5x UART, 3x SPI, 4x I2S, 8x I2C, 2x CAN, GPIOs
Power	10W - 20W
Mechanical	87mm x 50mm
	400-pin connector
	Integrated Thermal Transfer Plate
